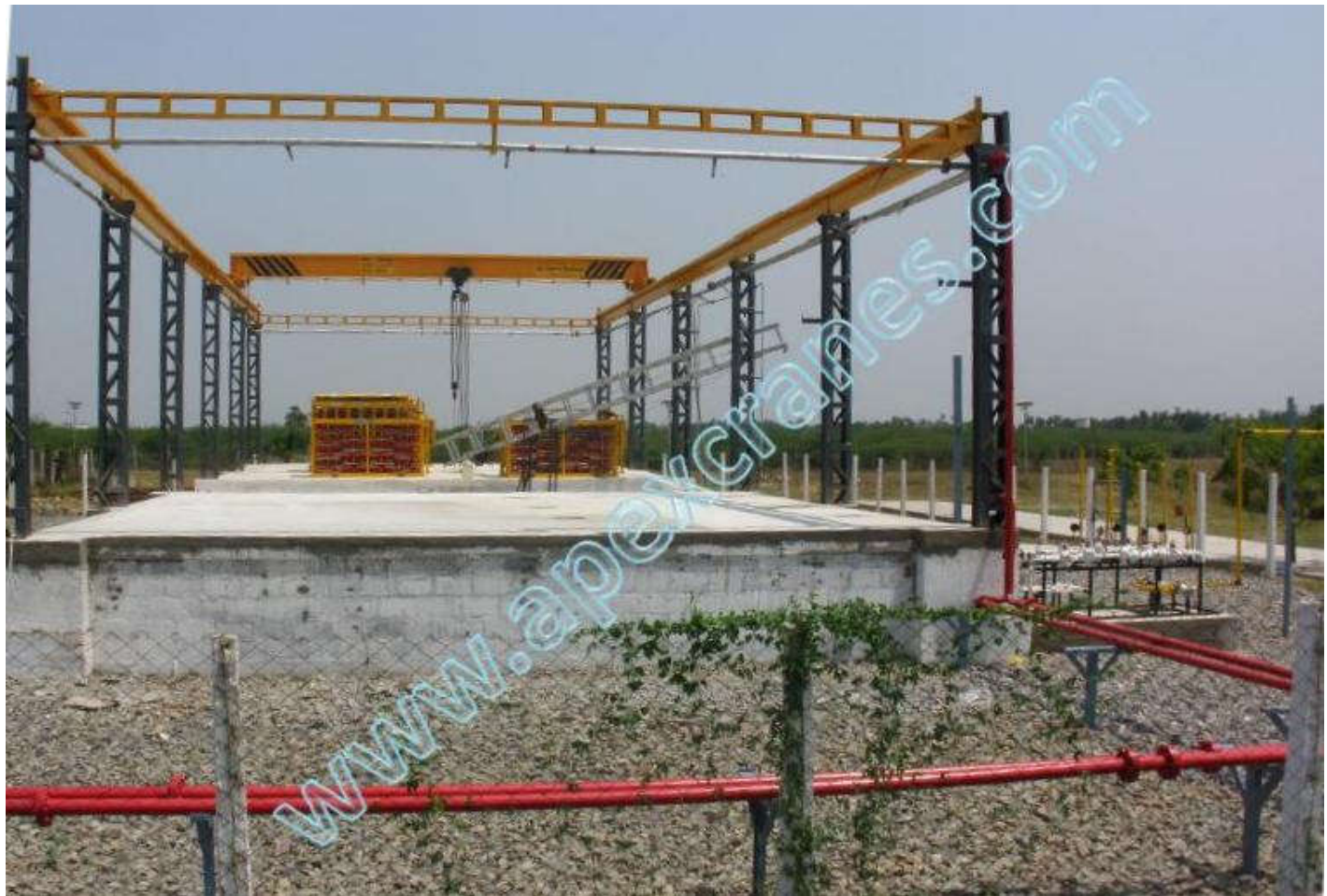

Hand Operated Travelling Cranes
Further, the cranes can be offered either with an Electrically Operated Trolley (EOT) or a Hand Operated Trolley (HOT) dependent upon the application, customer requirement and cost.
Normally HOT cranes are used in areas where duty cycle is less like maintenance shed, pump house and rare lifting cases. Higher the lifting load is not recommended to use these crane as the effort to lift will be more. We offer the below range and specification of HOT Cranes.
| Specification | Description |
|---|---|
| Safe Working Load | 500 kg to 25000 kg |
| Span | 5m to 25 m (or as per customer specification) |
| Heights of Lift | As per customer specifications. |
| Class of Duty / Standards | Class 1(M1) as per IS 3177 / IS 807/ IS 3938. Also available as per FEM, DIN, BS or any other applicable international standards. |

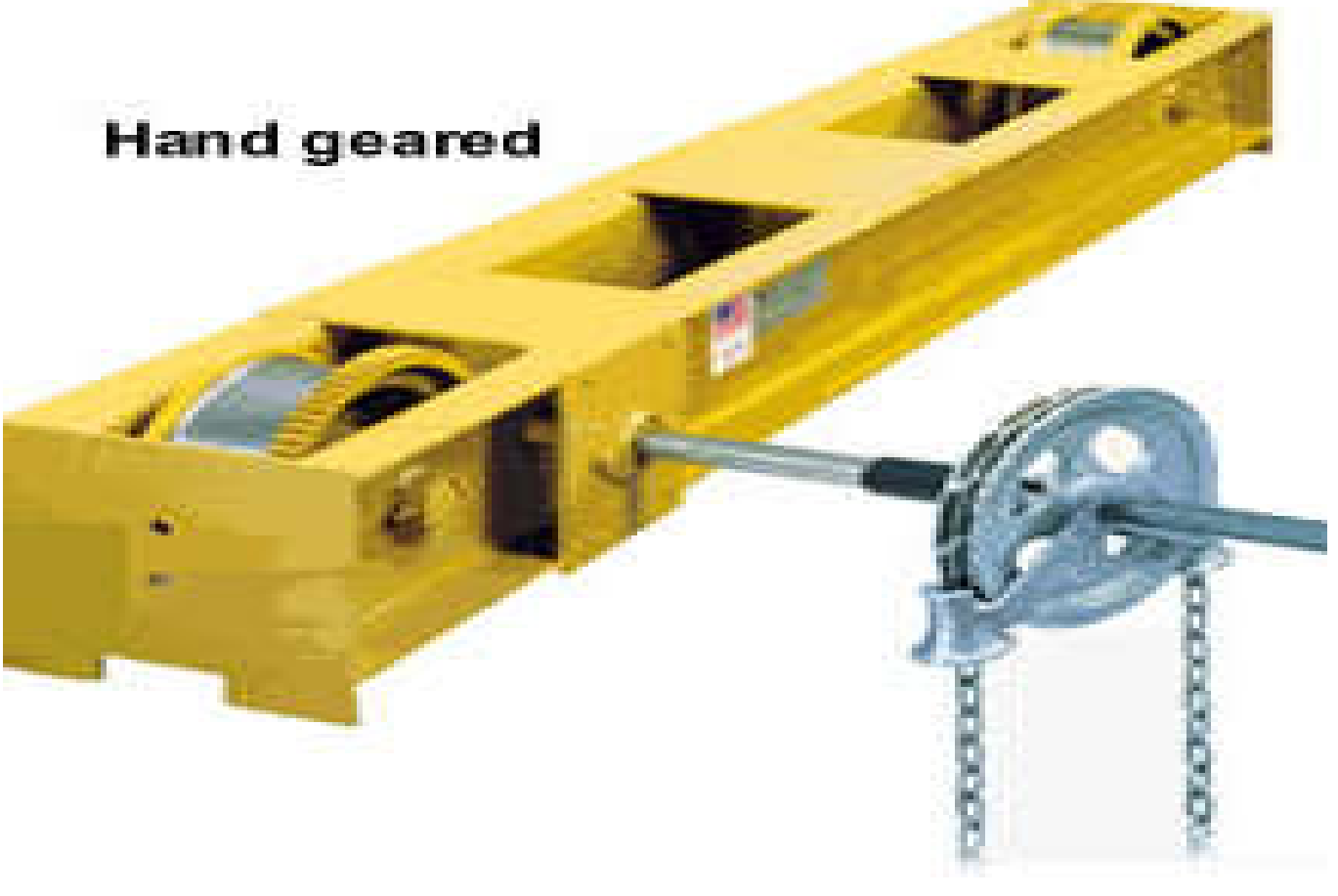

| Mechanism & Structures | Mechanisms are provided to reduce the effort of man to pull the chain for hoisting as well as in travel application. Structures are fabricated in plates / beams or channels, depend on capacity of crane. |
