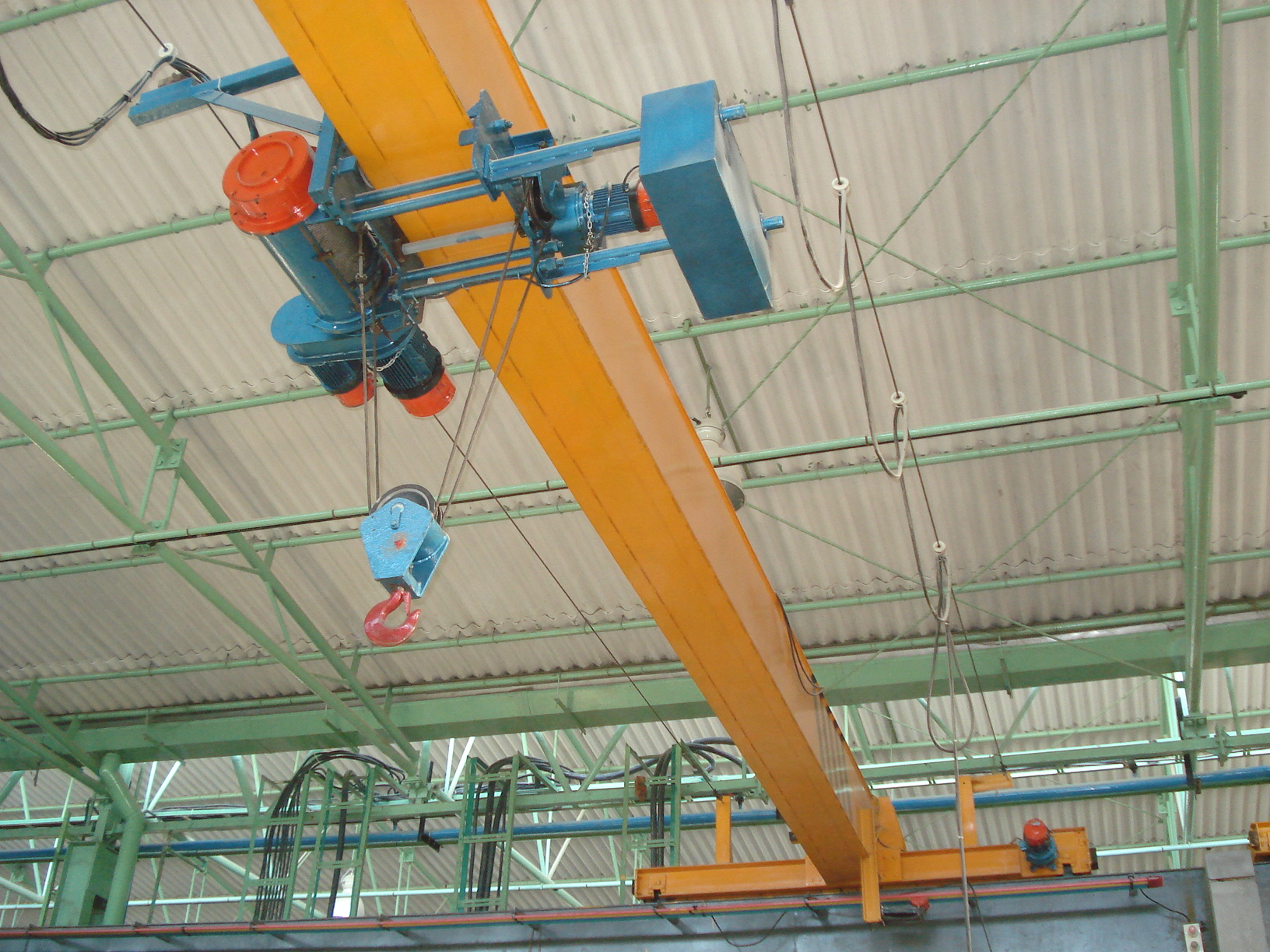

Single Girder EOT Cranes

Single Girder EOT Cranes

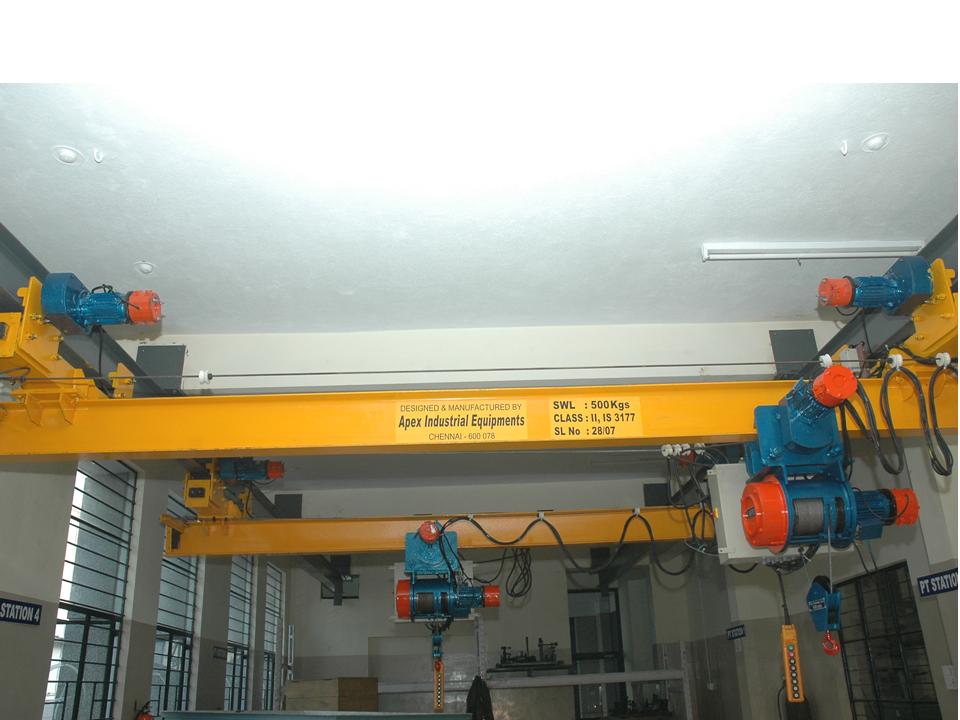

We, at APEX manufacture Single Girder Cranes in different configurations such as Single girder EOT cranes, under hung cranes, semi gantry cranes, gantry cranes.

Decision regarding the configuration is made depending upon the available shed dimensions and lifting requirements of the client.

Further, the cranes can be offered either with an Electrically Operated Trolley (EOT) or a Hand Operated Trolley (HOT) dependent upon the client need and budget.


Specification Description
Safe Working Load 500 kg to 30000 kg
Spans 5 m to 40 m (or as per customer specification)
Height of Lift As per customer specifications.
Class of Duty / Standards Class 2(M5), Class 3(M7), Class 4(M8) as per IS 3177 / IS 807/ IS 3938. Also available as per FEM, DIN, BS, AISE, ASME or any other applicable international standards.
Speeds Selected depending on client specifications / applications / shed dimensions / requirement
Crane Control From floor through Pendant Push Buttons (Radio remote Control shall be offered as optional on customer choice)
Drive System Twin Drive through inline spur / helical gear box with standard IEC frame Squirrel Cage Induction with fail safe AC brakes.
Motors Standard IEC frame Squirrel Cage Induction Motors for Hoisting, Cross Travel as well as Long Travel. Insulation Class for all motors B/F
Brakes AC Electro Mechanical Brakes for Hoisting, Cross Travel and Long Travel motions.
Power Supply System For Hoist and Cross Travel through Trailing Cables and for Crane through Trailing Cable / MS Angle Iron Conductors / Bare Copper Conductors (Depend on length of travel and on customer's choice)
Safe Working Load 500 kg to 30000 kg

Standard Features of APEX Single Girder Cranes:

Optimum design ensuring minimum Dead Weight, Wheel Loads, Head Rooms and Clearances, reducing building costs.

  • Forged cross travel & long travel wheels on Ball / Spherical Roller Bearings, resulting in long trouble free service.

  • Hobbed and Run-In Heat Treated Gears machined from High Carbon Steel / Alloy Steels to ensure smooth, silent and durable service.

  • Amply proportioned Main Girder and End Carriages made up of appropriate rolled sections or from rolled sections with cover plates or fully fabricated construction.

  • Well designed Dead Axle Type Straight Tread Runner Wheels on Single Girder EOT cranes and Dead Axle Type Taper Tread Runner Wheels on Under-Slung Single Girder EOT cranes.

  • Rope Drum fabricated from IS 2062 plate, fully stress relieved and all the long seams are 100% radio graphed.

  • Standardized sub-assemblies used for complete range ensures quick supply of spares in case of emergencies or routine maintenance.

  • All exposed parts primed with Red-Oxide Zinc Chromate Primer and finished with enamel paint to customers' color scheme.
